Mechanical Fuel Pump, Temco Auto Parts

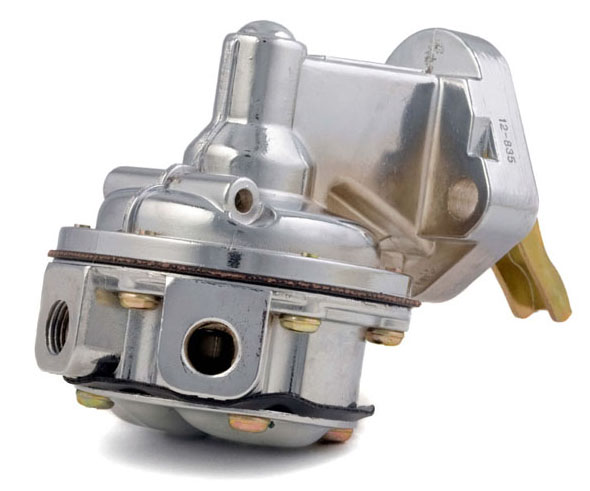

Mechanical Fuel Pump

TEMCO provides high quality mechanical fuel pumps for diesel and gasoline engines. Built to tough OE engineering standards, we produce pumps for cars, vans, compressors, tractors, multicultivators, marine machines, machinery ...are available for most applications, in either the die-cast aluminum or the stamped steel mechanical fuel pump, for passenger vehicles, pick-up & heavy duties for most applications including Toyota, Mitsubishi, Honda, Nissan, Suzuki, GM, FORD, VW, Renaul, Peugeot and etc.

Older model vehicles with carburetors typically use mechanical fuel pumps. The pump can be located next to or on the engine, and uses an internal diaphragm to draw fuel from the tank and push it into the carburetor. A worn internal diaphragm is the most common cause for mechanical pump replacement. The diaphragm is made of cloth-reinforced rubber, and with age may wear out and leak causing poor fuel delivery. Because the diaphragm is integrally sealed inside of it, the entire mechanical fuel pump must be replaced.

Partner with leading Chinese fuel pump manufacturers, TEMCO understand what it takes to make the smart parts that technicians are looking for. Every fuel pumps are tested for durability and reliability before shipping to our customers. All of that hands-on experience results in a fuel pump lineup that meets high standards and ultimately creates satisfied customers.

* HIGH STRENGTH CASTINGS: Exclusive casting material and design to eliminate cracking, breakage, waviness and leakage.

* CORROSION RESISTANCE: Castings are bead blasted and alodine treated. Then color coded with baked catalyzed coating..

* DIAPHRAGM: All pumping diaphragms are stamped from flat sheet stock. The convoluted (stepped) replacement doesn¡¯t require stretching,eliminating leaks and elongated bolt holes. Less stress to the diaphragm itself means much longer life.

* DRIVE SPRING: Single spring replaced with two stainless alloy springs to lower stress and improve reliability

* INTERNAL PUMP ARM: CNC milled from high strength 0-1 tool steel, then hardened and ground.

* PUMP ARM BUSHING: Low strength bushing prone to breaking replaced with a A-2 high strength tool steel precision part.

* VERTICAL PUMP SHAFT: Premium A-2 air hardening tool steel, CNC machined, smooth center less ground shaft. Creates an ideal surface for the new double lipped oil seal. On the pivot end a hardened and ground pin pivots in a precision pocket. Previously two raw stamped steel edges created pivot point. Rough shaft made oil seal prone to leak.

Products available in AUTONOVA, TOSHIO, OKAYAMA, EILSER & other attractive packings. For more information about TEMCO mechanical fuel pump, please download our catalogues or contact us
